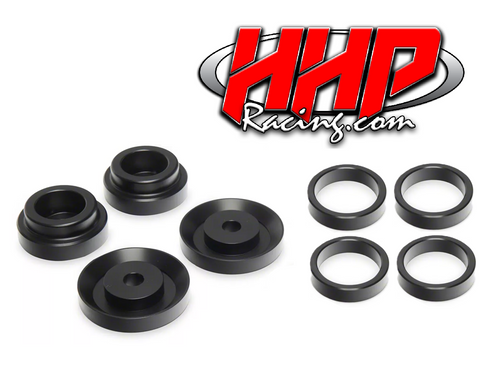

Put the power down with greater control using the HHP Racing Billet Aluminum Rear Cradle Lockout Kit.
Designed for 2006-2023 Dodge Challenger, Dodge Charger, Dodge Magnum, and Chrysler 300 applications, this bolt-on rear cradle and subframe upgrade helps reduce the unwanted movement and bushing deflection that can contribute to wheel hop, inconsistent launches, and a less stable rear suspension.
The factory rear cradle is mounted to the chassis using soft rubber bushings designed to help isolate noise, vibration, and harshness. While that works well for everyday comfort, the factory bushings can flex and allow the cradle to move under hard acceleration, aggressive cornering, and demanding performance driving. That movement can delay suspension response and make it more difficult for the rear tires to apply power consistently.
The HHP Racing Rear Cradle Lockout Kit uses precision-machined billet aluminum plates to capture and reinforce the factory cradle bushings, greatly limiting their ability to deflect under load. By reducing movement between the rear cradle and the chassis, the kit helps create a more planted, responsive, and predictable feel without requiring the factory bushings to be completely removed and replaced.
This makes the HHP Racing lockout kit an excellent upgrade for everything from daily-driven street cars and spirited handling builds to high-horsepower HEMI combinations and drag-racing applications. Whether you are trying to reduce wheel hop, improve launch consistency, or sharpen rear suspension response, controlling cradle movement is an important step toward getting more usable performance from your vehicle.
Features and Benefits:
- Reduces rear cradle and subframe movement under acceleration and cornering
- Minimizes factory cradle-bushing deflection
- Helps reduce wheel hop during hard launches
- Improves rear suspension stability, response, and predictability
- Can help provide more consistent traction and launches
- Precision-machined billet aluminum construction
- Durable black anodized finish for corrosion resistance and a clean appearance
- Retains and reinforces the factory rear cradle bushings
- Bolt-on installation with no permanent chassis modification required
- Ideal for street performance, drag racing, and handling applications
Why Install a Rear Cradle Lockout Kit?
When the rear cradle moves independently from the chassis, some of the vehicle's initial response is absorbed by the soft factory bushings instead of being transferred directly through the suspension and tires. Reducing that movement helps the suspension react more consistently and allows the driver to feel more connected to the rear of the vehicle. For modified or high-horsepower cars, this can be especially valuable when launching from a stop or applying power aggressively.
Applications:
- 2008-2023 Dodge Challenger
- 2006-2023 Dodge Charger
- 2006-2008 Dodge Magnum
- 2006-2023 Chrysler 300
Installation Notes:
- The rear cradle must be supported and partially lowered during installation.
- Basic hand tools and appropriate vehicle-lifting equipment are required.
- Typical installation time is approximately three hours depending on experience, equipment, and vehicle condition.
- Professional installation is recommended.
- Contact HHP Racing before ordering if you have questions about vehicle compatibility or installation.
