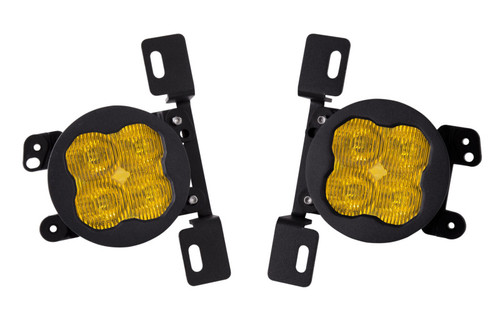

Diode Dynamics DD7058 SS3 Max LED Amber Backlit Yellow SAE Fog Light Kit for 07-18 Jeep Wrangler JK, 18-24 Wrangler JL & 20-24 Gladiator JT with 10th Anniversary Metal Bumper

Product Code: dioDD7058
(No reviews yet) Write a Review
Share:
$669.95
UPC:
691025934076
High Horse Performance is Veteran Owned & Operated
Description

Upgrade the fog lights on your Jeep with these SS3 Fog Lights which feature higher output intensity than any other 3” light on the market. These LED pods have been designed for maximum functionality, with custom engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your Jeep in minutes. Simply remove your factory fog light, assembly and these will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

The SAE Fog uses a distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations, the SAE Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function. If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a 2-pin to 4-pin wiretap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand-new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

  • 12,500 Candella
  • 125 Lux at 10 meters
  • 3,500 Lumens
  • 7,920 Raw Lumens
  • 3000K Color Temperature

Includes:

  • (2) SS3 3” Round LED Pods
  • (2) Plastic Type M Base Mounting Brackets
  • (2) Steel Type MR Mounting Brackets
  • (2) 9006 DT Adapters
  • (2) 5202 DT Adapters
  • Hardware
