Diode Dynamics DD5165 Elite Max LED Headlights for 18-24 Jeep Wrangler JL & 20-24 Gladiator JT

Product Code: dioDD5165
(No reviews yet) Write a Review
Share:
$999.95
UPC:
195995129529
High Horse Performance is Veteran Owned & Operated
Description

Introducing Elite Series LED Headlights for the Jeep JL Wrangler and Jeep Gladiator JT from Diode Dynamics! These headlights were designed for maximum performance, and they are the only 9-inch headlights that are 100% engineered and assembled in the USA. With the latest technology and features, they redefine what’s possible for aftermarket headlights!

With OEM-grade quality, the Elite Series headlights will add a switchback turn signal, welcome sequence, a brighter DRL halo with selectable color, and optional offroad lighting and show mode. Plus, you’ll get unmatched performance and output, backed by an 8-year warranty.

Maximum Light Output:

First and foremost, the Elite Series LED Headlights provide full LED illumination for both low beam and high beam function, with the modern, rectangular bi-LED projector. This unit provides higher intensity than both the OEM halogen and LED options, shining light far down the road ahead. The beam pattern has a sharp cutoff, with excellent center intensity and strong width, for a fantastic nighttime driving experience. The same projector is installed on both the Elite and Elite Max models.

Welcome Sequence. Anytime you hit the unlock button, your Elite Series headlights will show off their capabilities with a gradual illumination of the LEDs. This provides an unmistakable indicator of the modern technology packed inside. Note that this feature is programmable, and can be easily disabled if desired.

Selectable DRL - On the Fly. These headlights feature a selectable DRL, to customize the look of your Jeep. With up to four distinct DRL modes, you can choose white and amber colors, and enable or disable the extra DRL bars (if equipped). The best part? You don’t even have to pop the hood. The patent-pending technology allows you to program your headlights from inside the vehicle, using existing controls. No extra switches, wires, or controllers required! NOTE: The DRL will automatically display white when the low/high beams turn on.

Switchback Turn Signal. Stock headlights don’t have a turn signal. Where’s the fun in that? The Elite Series headlights will flash amber any time the turn signal is activated. When you’re done making your move, they’ll switch back to the white parking light, or your selected DRL color. With the plug-and-play harness included, no wire splices are needed to add this function. Thinking about a fender chop? The Elite Max model also provides enough turn signal output to be SAE compliant, replacing your factory turn signal completely, unlike the LED strips found in most chop kits. If you’re serious about off-roading but want to stay safe, the Elite Max is the perfect solution.

Not just on road! First in its class, the Elite Max model includes a patent-pending Trail Light off-road lighting feature. With the same emitters found in the popular Stage Series off-road products, the top and bottom reflectors shine extra light in a wide beam, to illuminate the trail ahead. The high-power LEDs stay cool, thanks to custom-designed heatsinks. An extra switch is included to activate these Trail Lights, or they can be connected to a factory auxiliary switch, if equipped.

Show Mode. As if the other features weren’t enough, the Elite Max model comes with a patent-pending Show Mode. Whether you’re parked at a show or just want to be seen, you can activate the show mode any time you’re stopped. Choose between four functions: Gradual, White Strobe, Amber Strobe, or Amber/White Strobe. Of course, there’s no need for extra controllers - simply toggle your off-road switch to easily start show mode from your cabin.

Plug-and-Play Installation. These headlights were designed to be a direct replacement for both halogen and LED-equipped Jeeps, in all trim levels. Simply remove your factory headlight assembly and these will bolt right in its place. A plug-and-play wire harness is included to hook them up to your factory connector, and also add the turn signal connection. No splicing required! With built-in adjusters, the lamps can be aimed using the provided adjustment tool. For Sport owners, a simple add-a-fuse is included to provide the DRL function. Elite Max customers will also receive an extra braided wiring harness, for the off-road and show mode feature! This harness includes a toggle switch, or you can connect it to a factory auxiliary switch, if equipped.

Assembled with Quality - in the USA. Most OEM headlights are made in the US, but nearly all aftermarket headlights are assembled overseas. There’s a reason for that - quality control counts, and the OEMs know it. We’re working to break that mold, and deliver headlights with the same quality you’ll find from the factory. Elite Series headlights are proudly assembled in the USA using OEM-grade materials, including a cast aluminum driver and heatsinks, UV-coated outer lens, aluminum-core circuit boards, and automotive-grade LED emitters. After being assembled by the team in St. Louis, Missouri, they are robotically sealed and individually pressure-tested for long-lasting protection against moisture, before being packaged in custom foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

Proven Reliability - Backed for 8 Years. Like the popular Stage Series lineup, Elite LED headlights have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like the factory components on your vehicle. With integrated moisture-proof vents, the lamps can “breathe” with changes in temperature, maintaining a strong seal over time. And with built-in circuit protection for voltage spikes and reverse polarity, these lights will keep working for years. They are backed by an industry-leading 8-year limited warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. Diode Dynamics directly assembles and engineers their own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

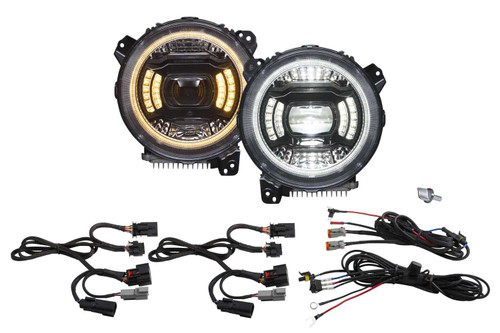

Included:
  • (2) Jeep Elite or Elite Max Headlamps
  • (2) Adapter Harnesses
  • (1) DRL Auxiliary Tap Harness
  • (1) Adjuster Tool
Warranty: 8 year warranty

100% Satisfaction Guarantee

These lamps are not compatible with Canadian-spec models. Sport models will use the included add-a-fuse to provide DRL power.

Measured Lumens: 917 (Low Beam), 1398 (High Beam)
Intensity (cd): 54,500 (Low Beam), 76,000 (High Beam), 9,100 (Offroad)
Color Temp (CCT): 6000K
Power (watts): 51.01 (High Beam)
Operating Voltage: 9-16V
Current (amps @ 12.8V): 3.986 (High Beam)
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, 3030 Bicolor
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Linear Regulated, Constant Current
Materials: UV Coated Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
Intrusion Ratings: IP67 Weatherproof
