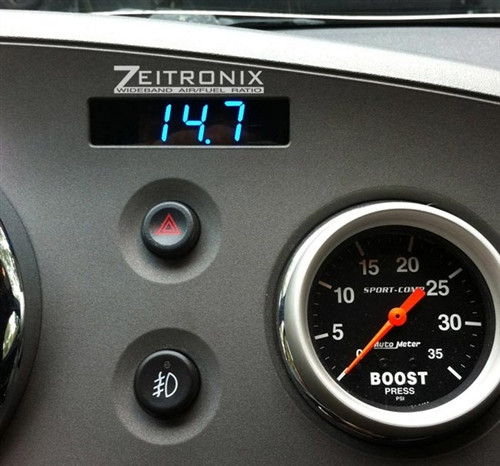

The Zeitronix Hacker/Tweaker is a very small AFR or Lambda display for the Zt-2 or Zt-3 Wideband Systems. Designed to fit into tight spots, full board dimensions are less than 2" by 1". The minimum opening to display the digital readout is only 0.56 x 1.4 inches. It's an open frame and bare board display meant to be mounted in the dash, in place of a stock clock or wherever you, the Hacker/Tweaker wants to mount a discrete wideband display. Like all LED displays it requires a tinted foil or Lexan cover. There are two mounting holes for screws or standoffs. It powers up right from the Zt-2 or Zt-3 DATA port.
The Hacker/Tweaker is available in units of AFR and blue or red digit colors.
Full board dimensions are less than 2" by 1", only 1.975 x .930 inches (50.17 x 23.62 mm) board thickness is approximately 0.5" (12 mm) Digit readout area is 0.56 x 1.40 inches (14.22 x 35.56 mm) Two mounting holes for #4 (or 3mm) screws. Cable length is 5 feet to reach your under dash Zt-2 or Zt-3 and can be extended if necessary
