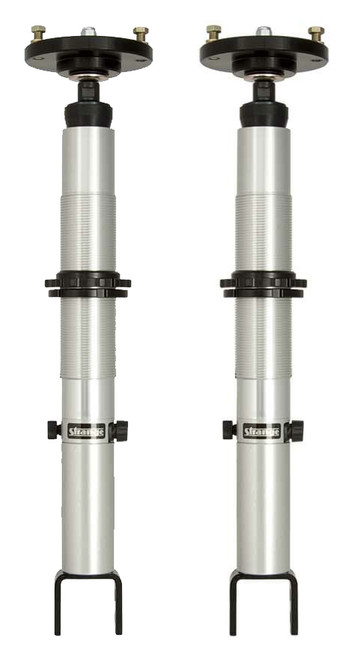

Bolt-in coil-over front shock. Drag Race Only.
Description
- Double Adjustable Aluminum Shock
- Drag Race Only
Adjustments
- Extension Settings
- Softer – Allows for more weight transfer
- Stiffer – Enables quicker reaction times
Compression Settings
- Softer – Improves reaction to bumps in the track
- Stiffer – Dampens impact forces from wheel stands
- Rotating Knobs Clockwise Stiffens Valving
Dimension A
- Extended 26.46″ / Compressed 22.00″
Features
- Lightweight aluminum body
- Independent external adjustment knobs
- Provides 10 extension & compression settings
- Allows quick adjustments for varying conditions
- Integral coil-over body
- Permits simple changes to ride height
- Custom valving available upon request
- Ability to be rebuilt or re-valved
Spring
- 14″ x 2.5″ ID – Sold separately
Recommendation
- 150-175 lbs rate
Consult your chassis builder for their suggestion
Related Components
- Spring seat bearing kit S1409 - Eases ride height adjustment, Prevents spring bind when rotating adjuster nuts
- Spring seat wrench S1413, Simplifies adjustment of ride height, Secures jam nut once proper ride height is achieved, Prevents damage from use of improper tools
Springs we offer
- 14″ 150 lbs SP14150
- 14″ 175 lbs SP14175
