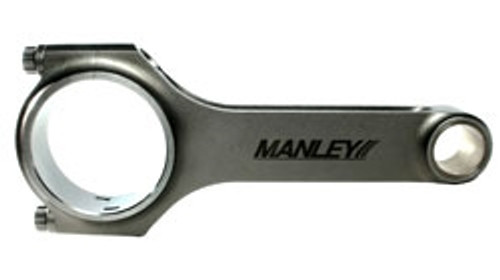

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 7/16" ARP cap screws.
- Connecting Rod Length Center to Center (in): 6.125 in.
- Connecting Rod Material: Forged 4340 steel
- Connecting Rod Finish: Shot-peened
- Wrist Pin Style: Floating
- Clearanced for Stroker: Yes
- Fastener Yield Strength (psi): 200,000 psi
- Connecting Rod Bolt Head Style: 12-point
- Approximate Connecting Rod Weight (g): 651
- Big End Bore Diameter (in): 2.1250 in.
- Pin End Bore Diameter: 0.9281 in.
- Big End Width (in): 0.941in.
- Pin End Width (in): 1.060 in.
- Advertised Horsepower Rating: 950 hp
- Advertised RPM Rating: 8,000 rpm
- Weight Matched Set: Yes
- Magnafluxed: Yes
- Quantity: Set of 8
