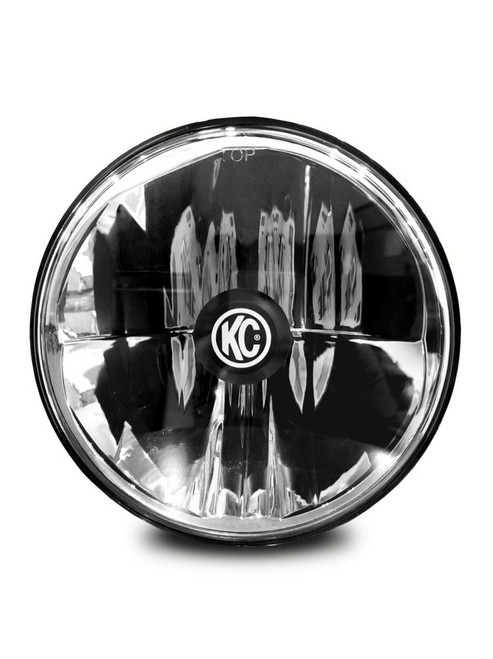

KC HiLiTES Gravity LED 7" Jeep JK Headlight replacement features CREE LEDs for DOT low and high beams on 2007-2018 Wrangler JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. The durable die-cast housing, and a hard coated Polycarbonate lens is designed to withstand the harshest climates, terrains and driving conditions.
Gravity LED 7" Headlights feature KC's patented Gravity Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
Features:
- 1 x 40W Gravity LED 7" Headlight
- Hard Coated Polycarbonate Lens
- Fully Plug-n-Play for 07-18 Jeep JK Wrangler
- Precision Die-Cast Aluminum Housing
- KC Engineered Polished Reflector Optics
- DOT Compliant Low Beam and High Beam with On-board Day Running Lamp Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
Performance:
- Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
- Compliance: DOT-Compliant
- Lux @ 10 Meters: Low- 415 lx, High- 775 lx
- Candela: Low- 41,500 cd, High- 77,500 cd
- Beam Distance: Low- 407m, High- 557m
Specifications:
- Wattage: Low- 18W, High- 22W
- LED Bulb: CREE XHP35 HI and Nichia
- Color Temperature: 5000K
- Amp Draw: 1.88A
- Voltage: 9V-18V
- IP Rating: IP68
Includes:
- Gravity LED 7" Headlight
- Plug and Play H13 Connector for Jeep JK
