Turn your Jeep Wrangler JK into a serious off-road rig with a JKS J-Krawl 2.5" lift kit. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep’s factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features specially designed FOX 2.0 IFP shocks to maximize travel and performance. An aftermarket front driveshaft is strongly recommended due to additional travel capable. Routine maintenance is required.
- Front & Rear Dual Rate Coil Springs designed for a great ride quality and improved performance across any terrain.
- Front & Rear FOX 2.0 gas shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
- Front & Rear J-Flex Lower Control Arms for improved strength and caster correction.
- Front & Rear J-Flex Upper Control Arms for improved strength and caster correction.
- Front & Rear Bump Stop Extensions to properly limit suspension up travel.
- 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
- Rubicon sway bar link hardware included in kit.
- Requires 17" or larger wheels with 4.5" BS (or smaller) for steering clearance.
Tire: 33x12.50
Wheel: 17x9, 18x9, 20x9
Backspacing: 4.5"
Other tire/wheel sizes can be used, however may require additional modifications.

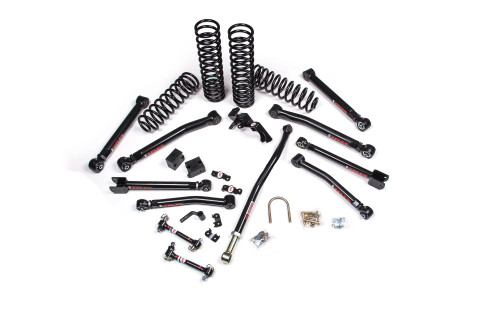

In the box for JSPEC149KFR:
-
JSPEC2354 1ea 07-18 Jeep Wrangler JK J-Krawl Main Box Kit
- JKS1615 1ea JK Front Adjustable UCA
- JKS1610 1ea JK Front Adjustable LCA
- JKS1665 1ea JK Rear Adjustable UCA
- JKS1660 1ea JK Rear Adjustable LCA
- JSPEC2250 1ea 07-20 JK 4Dr 2.5"" Coil Box Kit
- FOX98524039 2ea Fox Reservoir Shock Front
- FOX98524036 2ea Fox Reservoir Shock Rear
All JKS products are protected by a limited lifetime warranty to ensure they are free from manufacturer defects in material and workmanship so you can go with confidence knowing your JKS parts are covered.
