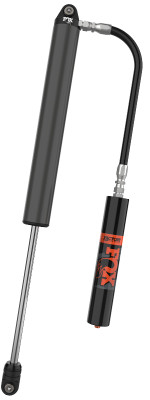

Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.
Dual coated body with proprietary FOX Grey Cerakote protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
Wire ring bearing design
Black anodized, CNC machined 6061-T6 billet aluminum spring divider
Smooth bore and honed seamless steel body
1" hard chrome plated 17-4 H900 stainless steel shafts
7075 hard-anodized billet aluminum 9-port high-flow piston
High-temp Viton redundant sealing pack system with main seal, wiper seal and scraper seal
JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
PFTE-lined, heat-treated steel spherical bearings
Reusable ORB O-ring port hose fittings for superior seal
Adjustable preload rings, crossover rings, spring divider and spring retainer
2.50" Eyelet Length
5/8" Bolt x 1.50" mounting width
For use with 3.75" ID Coil Springs
3 x 12 Remote Reservoir
-12 x 18 Hose Length
Extended Length 29.5
Compressed Length 19.5
