The Bumper LED Pod Light Kit for your Jeep Wrangler JL Wrangler from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods.
NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.
Included with the kit is a OEM Auxiliary Switch Wiring Harness. This harness allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, a Heavy-Duty Wiring Harness is also included to mount a switch and connect directly to the battery.
Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly functional beam patterns with high efficiency.
Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.
Driving is great for general illumination at speed. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in a 30x20 degree spread, providing just enough width to fully illuminate the road ahead at high speeds, but still staying focused to avoid too much foreground light. Although the SS5 Driving is too bright to be considered an SAE Auxiliary High Beam, it is perfect for an extra boost of light at speed.
These kits are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
These kits are also available in two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W.
Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Highlights:
- Ultra-high intensity, with custom-engineered TIR optics
- Selectable backlight color, with eight color options
- Torture-tested, heavy-duty construction
- Control through factory aux switch bank using the included harness
- Assembled in USA

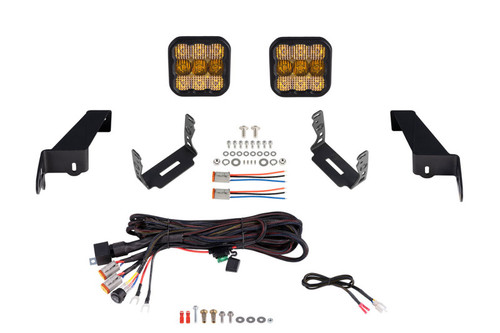

- (2) Application-specific heavy-duty steel brackets for installation on 2018-2023 Jeep Wrangler
- (2) Stage Series 5” LED Pods
- (1) heavy-duty dual-output 4-pin wiring harness
- Installation Guide
- Mounting hardware
