The Cowl Mount LED Light Brackets from Diode Dynamics allows you to easily mount just about any auxiliary lighting you can think of. These Jeep specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! They also feature a low-profile design, which eliminates excess whistling or major wind noise.
These brackets were designed with a variety of different mounting points for endless mounting options. You can mount multiple pods, a larger work light, or even a small light bar to achieve the look you're after! There are even slots on the side of the bracket to mount ditch lights. When standard pods are installed on the outer slot, you can fold the windshield down without removing your auxiliary lighting. When installed along with a Hood Light Bar Kit, you can easily mount a 50" Stage Series light bar across the hood as well.
The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.
Included with the full light bar kit is our new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy-Duty Dual-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern, much more focused than older LEDs on the market.
All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
Driving Pro:
- 66,500 Candela
- 665 Lux at 10 meters
- 3,000 Lumens
- 5,796 Raw Lumens
- 6000K Color Temperature
Flood Pro:
- 3,100 Candela
- 31 Lux at 10 meters
- 3,000 Lumens
- 5,796 Raw Lumens
- 6000K Color Temperature

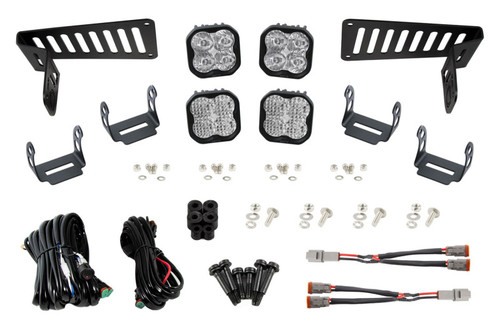

Includes:
- (2) Application-specific cowl mount brackets
- (4) Universal SS3 Mounting Brackets
- (2) SS3 LED Pods, Driving Optic
- (2) SS3 LED Pods, Flood Optic
- (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
- (1) Aux Switch Adapter Wire
- (2) 2-Way DT Splitters
- (6) Delrin spacers
- (6) OEM-style automotive-grade bolts
- Universal SS3 mounting hardware
Does not fit Mojave or Rubicon 392 due to taller hood and cowl.
