This Hood LED Light Bar Kit from Diode Dynamics allows you to easily mount a 50" light bar across the hood. These Jeep specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! When installed you can easily mount multiple pods on either side of the 50" light bar as well.
These L-shaped brackets were designed in-house specifically for the Stage Series light bar. They were designed to be low profile and won't block visibility while driving or block the wiper nozzles. This also means you won't hear whistling or major wind noise like you may have experienced with other light bar brackets.
The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.
Included with the kit is a new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy-Duty Single-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
You may think that you'll get lots of glare from light bouncing off the hood. However, thanks to custom-engineering TIR optics, Diode Dynamics Stage Series LED light bars shine light in a highly functional and useful beam pattern, much more focused than older LEDs on the market. The Driving optic easily shines right over the hood, even with the low mounting position.
All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 50" Combo Light Bar features six driving lenses in the middle with two flood lenses on the outer edges.
- 9,600 Candela
- 98 Lux at 10 meters
- 6,400 Lumens
- 9,120 Raw Lumens
- 2000K Color Temerature

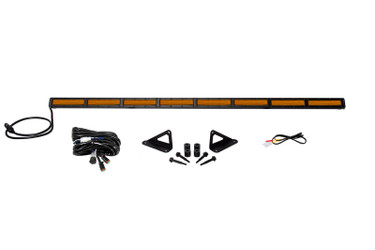

Included:
- (2) Application-specific hood brackets
- (1) SS50 Stage Series 50" Light Bars
- (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
- (1) Aux Switch Adapter Wire
- (4) Delrin spacers
- (4) OEM-style automotive grade bolts
Does not fit Mojave or Rubicon 392 due to taller hood and cowl.
