The Bumper LED Light Bar Kit from Diode Dynamics allows you to mount two SS30 Stage Series 30" LED Light Bars on the factory front bumper. These brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! A low-profile design eliminates whistling or major wind noise you may have experienced with other light bar brackets as well.
This kit can be mounted in different ways to achieve the look you're after! Mount a single light bar using the base brackets or use the included extension brackets to allow clearance for a winch or mount a second light bar for maximum light output. The brackets, without the light bars or harnesses, are available separately and are compatible with any generic 30" LED light bar.
Included with the kit is a new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy-Duty Dual/Single-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern, much more focused than older LEDs on the market.
All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.
Per Light Specifications:
- 10,000 Candella
- 100 Lux at 10 meters
- 7,000 Lumens
- 11,400 Raw Lumens
- 6000k Color Temperature

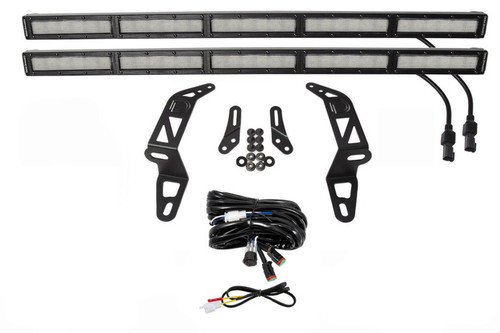

Includes:
- (2) Application-specific heavy-duty steel brackets
- (2) Extension brackets
- (2) SS30 Stage Series 30" Light Bars
- (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
- (1) Aux Switch Adapter Wire
- All Necessary Hardware
Does not fit Mojave or Rubicon 392 due to taller hood and cowl.
