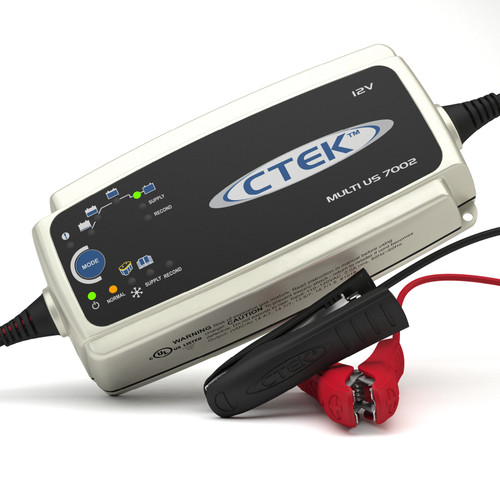

The MULTI US 7002 is the ideal battery charger for your camper, car, and boat. The battery charger is well suited for all-year use. Thanks to its SUPPLY mode the battery charger provides power even without a battery. The SUPPLY mode is indispensable when changing the battery as you avoid losing complicated program settings.
Perfect for vintage cars, boats with one battery, boats with start & service batteries, boats with start & service banks, scooters, motorcycles, Quads/ATVs, lawnmowers, RVs, and tractors (min 14Ah battery). Includes two interchangeable connection leads, one with clamps and one with eyelet terminals. A NEW GENERATION of CTEK universal charger, the MULTI US 7002 has a unique 8-step charging curve. This newly refined technology developed by CTEK ensures that the vehicle's battery gets the best possible care. It even analyzes if the battery can hold the charge given. If it cannot, the battery is faulty and needs to be replaced. The CTEK chargers are developed for safety: personal, vehicle, and battery.
Technical Data:
- Input: 110–115 VAC, 50–60 Hz, 2.0 A
- Output: 12 V, 7.0 A
- Battery chemistry: Lead acid
- Charging Voltage: 14.4V / 14.7V
- Battery types: WET; MF; Ca/Ca; AGM; GEL
- Battery capacity: 14–225 Ah
- Back current drain*: corresponding to less than 1Ah/month
- Battery voltage: 12 V
- Ambient operating temperature: -4 °F to +122 °F (-20 ˚C to +50 ˚C)
- Start voltage: 2.0 V
- Ripple**: Less than 4 %
- Degree of protection: IP65
- Dimensions (L x W x H): 8½ x 3½ x 1 in
- Net weight: 1.7 lbs
- Charge Current: 7A max
- Warranty: 5 years
*) Back current drain is the current that drains the battery if the charger is not connected to the power outlet. CTEK chargers have a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
