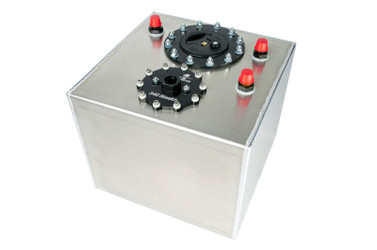

Street/Strip Fuel Cell with 340 Stealth Pump, aircraft filler cap, AN-08 ORB outlet port, AN-08 male flare baffled return and dual, roll-over protected AN-08 vents.
- Stealth 340 Fuel Pump (internal) - P/N 11540
- Baffled design keeps fuel at the pump inlet
AN-08 ORB Outlet Port - AN-08 Male Return Line Provision
- (2) AN-08 Male Vents with Rollover Valves
- Standard 12-Bolt Flush Mount Lid Assembly
- Integrated 0-90-ohm fuel level sending unit
- Natural Aluminum Finish
Supports up to:
- EFI - 700hp Forced Induction
- EFI - 850hp Naturally Aspirated
- Carbureted - 850hp Forced Induction
- Carbureted - 1000hp Naturally Aspirated
Dimensions:
- 6 Gallon: 12" L x 12" W x 10" H
- 15 Gallon: 18" L x 20" W x 10" H
- 20 Gallon: 24" L x 20" W x 10"
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
